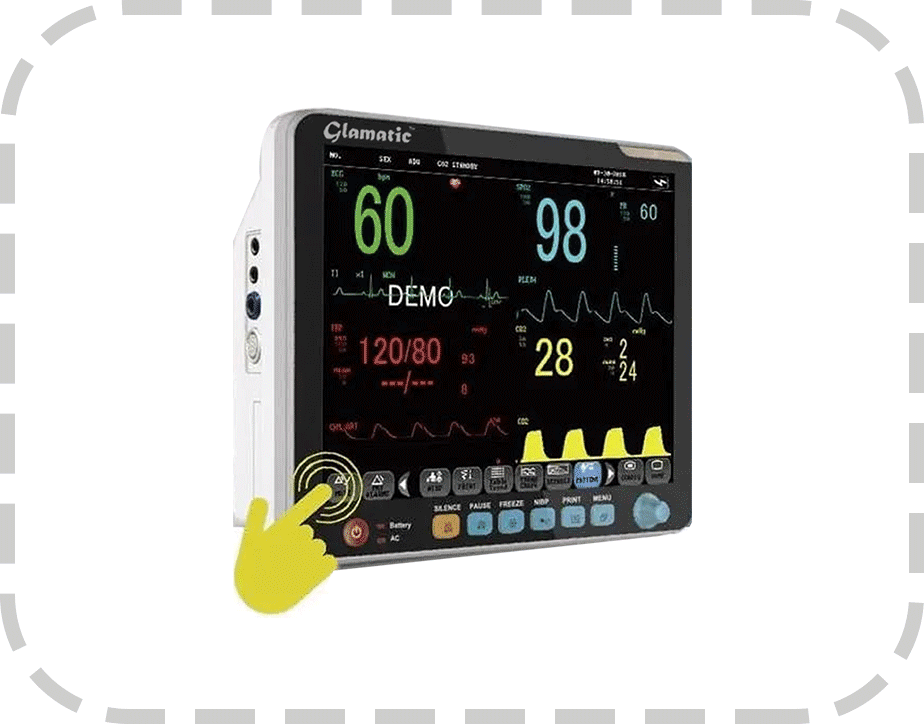

Multipara Patient Monitor
Model : GPM1015

Multipara Patient Monitor

ECG HR Spo PR NIBP RESP & 2-Temp Large 12.1” TFT Colour display. For Adult, Pediatric & Neonatal Usage. Read through Low Perfusion Condition High Filter to avoid drifting and interfering. Protect ESU (Electro Surgical Unit) Dug Dose Calculation, Arrhythmia Analysis, ST Analysis. Oxy CRG Display Multiple Face Selection with Large Font Size. Dynamic Trend – 198 Hrs Central Monitoring System (Optional) Upgradable to Etco2 , 2-IBP, Cardiac output, Masimo, Nelcore.
ECG •Lead : 5 leads (R,L,F,N,C)
•Heart Rate Range: 0-350bpm.
• Accuracy : 2% or 2bpm whichever is greater
• Arrhythmia Analysis: yes
•Lead Off : Auto Detection
• SpO2
• Read through motion & Low perfusion condition.
• Measurement Range : 0-100%.
• Alarm Range : 0-100%.

NIBP

• Measure Model : Auto Surge.
• Working Mode : Direct reverse & Quick processing.
• Cycle Time : 1-80 min.
• Overload Protection: Adult / pediatric / neonatal.
• Alarm Range for Systolic BP, Diastolic BP & Mean BP.
• Range : Adult : 25-260 mm Hg , Child: 25-195 mm HG& Infant : 15-145 mm Hg.
• Respiration

Respiration Method : IRSP

•Measurement range: 1-99rpm.
• Alarm Range : 1-120 bpm.
• Accuracy: 2rpm / 10% whichever is greater
• Respiration Scale : X0.5 , XI , X 2 , X4.
• Apnea Alarm : Yes.
• Temperature
•Channel : 2 with Difference indicator
• Measurement Range: 0-50 C.
• Alarm Range : 0-45 C.
• Resolution: 0.1C.
• Power Requirement
• AC Input: 220V 10% 50Hz
• Internal Battery: 4A / Hr 12V lead
• Battery Operation time: 130 min
• Facility for Auto Saving after shutdown
